Polipak, a leading producer of multi-layer polyethylene foil bags in Central and Eastern Europe, was faced with the unique challenge of efficiently and accurately combining blends of various recycled materials with virgin resins and delivering them to the numerous extruders in the plant. Each extruder might have its own unique blend of resins (PCR and virgin), according to each film layer’s strength requirements.
This challenge is part of Polipak’s commitment to the circular economy and sustainability in Europe, which includes use of recycled materials. Every day, Polipak processes more than 50 tons of recyclable materials. Equally important to Polipak is automation for the future to enhance production efficiency and quality, as part of the company’s goal of innovation in manufacturing, for a total Industry 4.0 production environment.
Polipak’s three-layer TriplePak flexible film meets these demanding sustainability requirements by responding to the needs of both the environment and the consumer. The use of recycled materials in combination with a special knurling treatment of TriplePak produces exceptional tensile strength with low tearing and piercing. Higher durability also means lower product consumption by the target consumer.
At the beginning of 2022, Polipak moved from two older, inefficient plants to a new state-of-the-art production plant based in Poland. In the older plants, manual labor was used for every aspect of the production process. For example, in its resin blending operation the resin/PCR/regrind blends required manual weighing of each ingredient for each special blend. Sixty extruders were fed by a turn head distributor that delivered one weighed virgin resin to several mixers. At the mixer stage, employees would pour additional PCR and regrind materials into the mixer with the virgin material. The mixed blends were then transported to the extruders by a vacuum conveying system. This manual blending process resulted in numerous errors in blend ratios and required additional maintenance because of spilled materials. Plant engineers were responsible for providing production instructions for these blends for each extruder for every run around the clock.
As the company started to design its future Industry 4.0 plant, Polipak searched for the best available solution to automate the complexity of blending any batch from the selection of 40 different resins and PCR materials and deliver individual blends automatically to each of the 100 extruders. After a recommendation, Polipak turned to the LIAD Smart patented BlendSave technology solution. BlendSave’s automated resin management, blending and distribution system provided Industry 4.0 technology and offered a simple, streamlined workflow process to facilitate ‘lights-out’ operation.
The patented, automated, centralized, multi-channel blending and distribution total system enabled Polipak to switch from a wasteful, inefficient, and overly complex weighing, blending and conveying system for plastic materials to a system providing automated and optimal management of multiple ingredients and processing machine combinations. BlendSave features precision weighing of each ingredient for individual recipe blends delivered to individual extruders without human involvement.

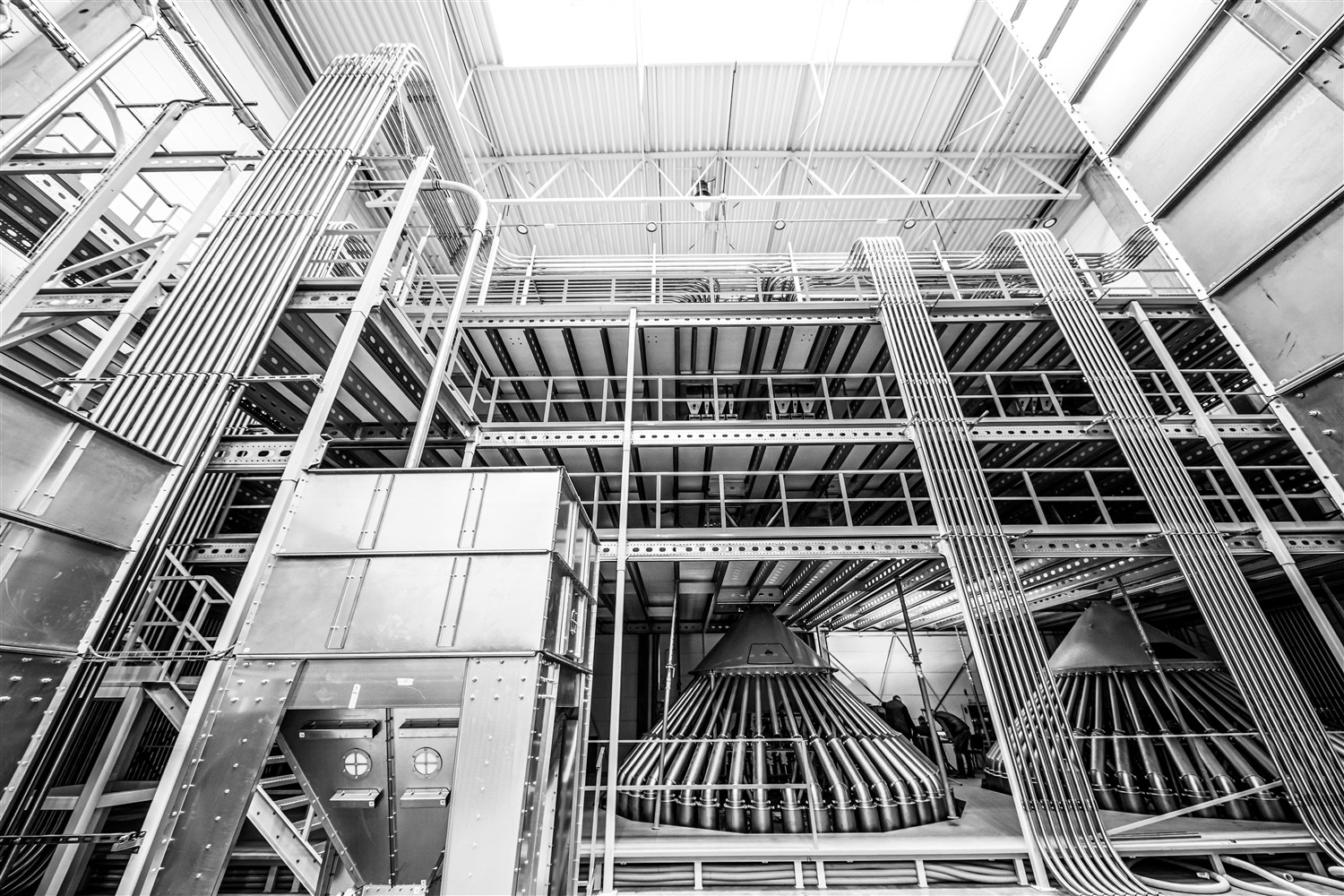

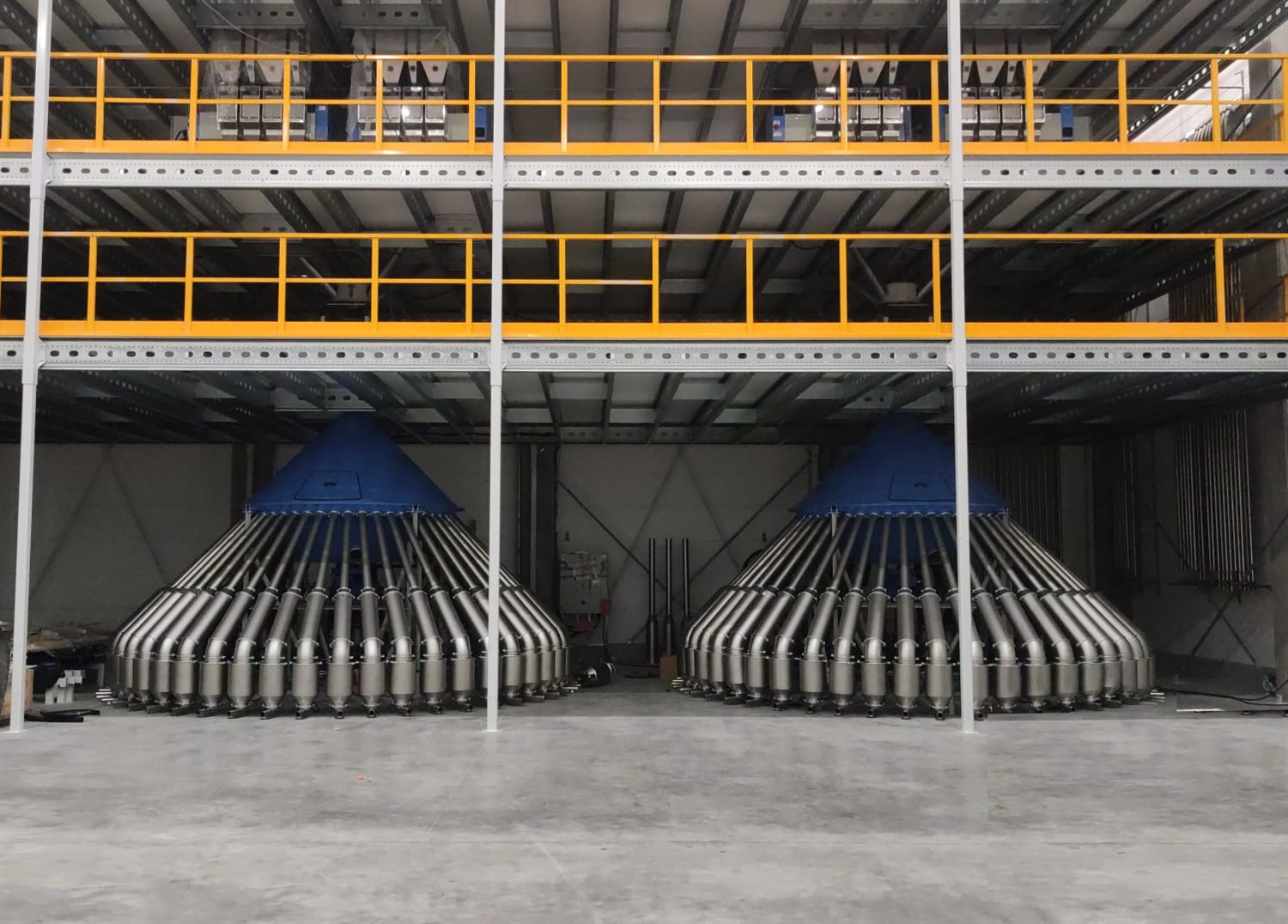

To meet Polipak’s specifications, LIAD engineered two BlendSave systems, each consisting of four basic BlendSave units, and with each unit consisting of 10 weighing channels; each BlendSave system accommodates 40 individual weighing chambers. Polipak’s 40 grades of resins, regrind, and PCR are now fed directly from silos to each of the dedicated 40 BlendSave intermediate hoppers, which then feed each dedicated weigh hopper, eliminating any threat of contamination. Each of the two BlendSave systems has an OctoBatch distributor that automatically channels each individual blend to 50 dedicated buffers, which in turn deliver the blends to the individual extruders in the plant. The process is entirely digitally managed; one employee operates the two systems, which include 100 dedicated blending channels serving 100 extruders.
Polipak’s technologist/ERP production coordinator uses Polipak’s MES software and LIAD’s managing software to transfer the recipes for the 100 extruders to the appropriate BlendSave PLC. The two PLCs transmit all the job’s historical data via LIAD’s software to the MES. According to predetermined recipes destined for predetermined extruders, each BlendSave unit simultaneously and accurately weighs the recipe’s raw materials and combines them as a batch. Each batch is distributed via the OctoBatch distributor to a buffer linked to one dedicated extruder. Once a signal is received from the extruder’s vacuum receiver, material from the linked buffer is transferred via a delivery pipe to the extruder. In each buffer, a level sensor signals to the PLC to refill it.
The result has been a significant step forward in achieving a total Industry 4.0 plant environment, with dramatic increases in overall plant efficiency and greater quality control as well as lower labor and maintenance costs. “I’m not sure even LIAD’s team realizes the huge advantages its BlendSave system contributes to Polipak and our Industry 4.0 objectives,” says Tomasz Trams, Polipak’s General Manager.
Moreover, Polipak has enhanced its leadership position in sustainability with the new BlendSave system. Using BlendSave provides precise control of PCR and virgin resins in creating multilayer films, which allows Polipak to efficiently use recycled materials, while still retaining important barrier properties to reduce food spoilage. As a result, these high-quality films are positioned for reuse by consumers and recyclers for many Polipak products.
Polipak, founded in 1986, is a leading producer of packaging and plastic bags for industrial and consumer use. The company, part of the Sarantis Group, has become one of the larges producers of foil packaging in Central and Eastern Europe. The company employs more than 350 people, with subsidiaries in 12 countries and exporting to more than 50 countries worldwide. Find out more at polipak.com.pl.
